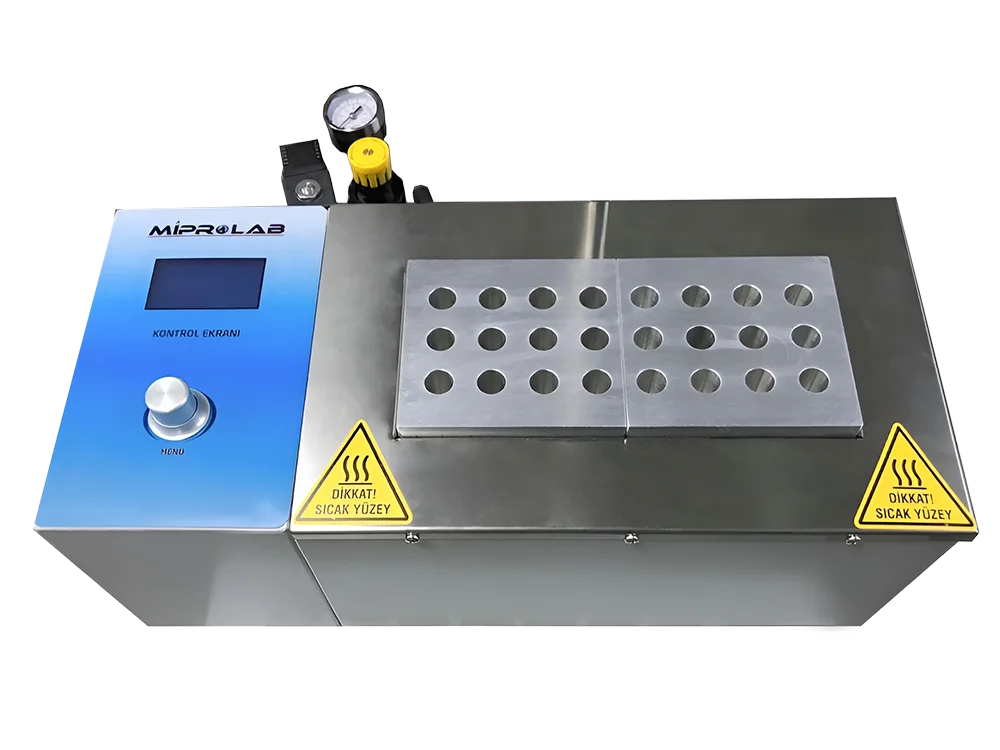

MAE SERIES NITROGEN EVAPORATOR
MAE Series Nitrogen Evaporators consist of a lower control section, stand, sample carrier and gas distribution system.
Test samples are located in aluminium blocks and reach the sample tubes from gas carrier compartments at 5-10 PSI pressure. These carrier heights can be adjusted depending on the dimensions of the test tubes and the liquid ratio inside them. Nitrogen gas samples are also blown onto the surface area using 316-type stainless steel needles or glass pipettes.
DIFFERENT OPTIONS
- Two different models: 12–24 sample capacity.
SAFE USE
- Easy and reliable use,
- • Long-term use thanks to the 304-grade stainless steel body and gas rail,
- • Replaceable aluminium block for tubes of different volumes,
- • High precision and temperature control,
- • Multiple samples can be blown at once,
- • Independent blowing for each sample,
- • High-temperature protection system,
- • Excessive gas consumption is prevented by an adjustable air flow rate,
- • Adjustable operating temperature with ±1°C accuracy between 0°C and 100°C,
- • Microprocessor-based (PID) control system and alarm-controlled temperature operating system,
- • 220 Volts, 50 Hz, 5 A.
| MAE-12 | MAE-24 | |||||
| OPERATING TEMPERATURE | O. S. +5 ºC / 200 ºC | |||||
| CONTROL SYSTEM | PID & MP | |||||
| TEMPERATURE SENSITIVITY | ± 1 ºC | |||||
| USABLE VOLUME | 12 Sample | 24 Sample | ||||
| POWER VALUES | 230 V, 50 HZ. | |||||
| EXTERNAL SURFACE STRUCTURE | Stainless Steel | |||||
OPTIONAL REQUESTS
- Production with Custom Dimensions and Specifications (Dimensions, Software, Programme)
