THE BEST CLIMATE CONDITIONS

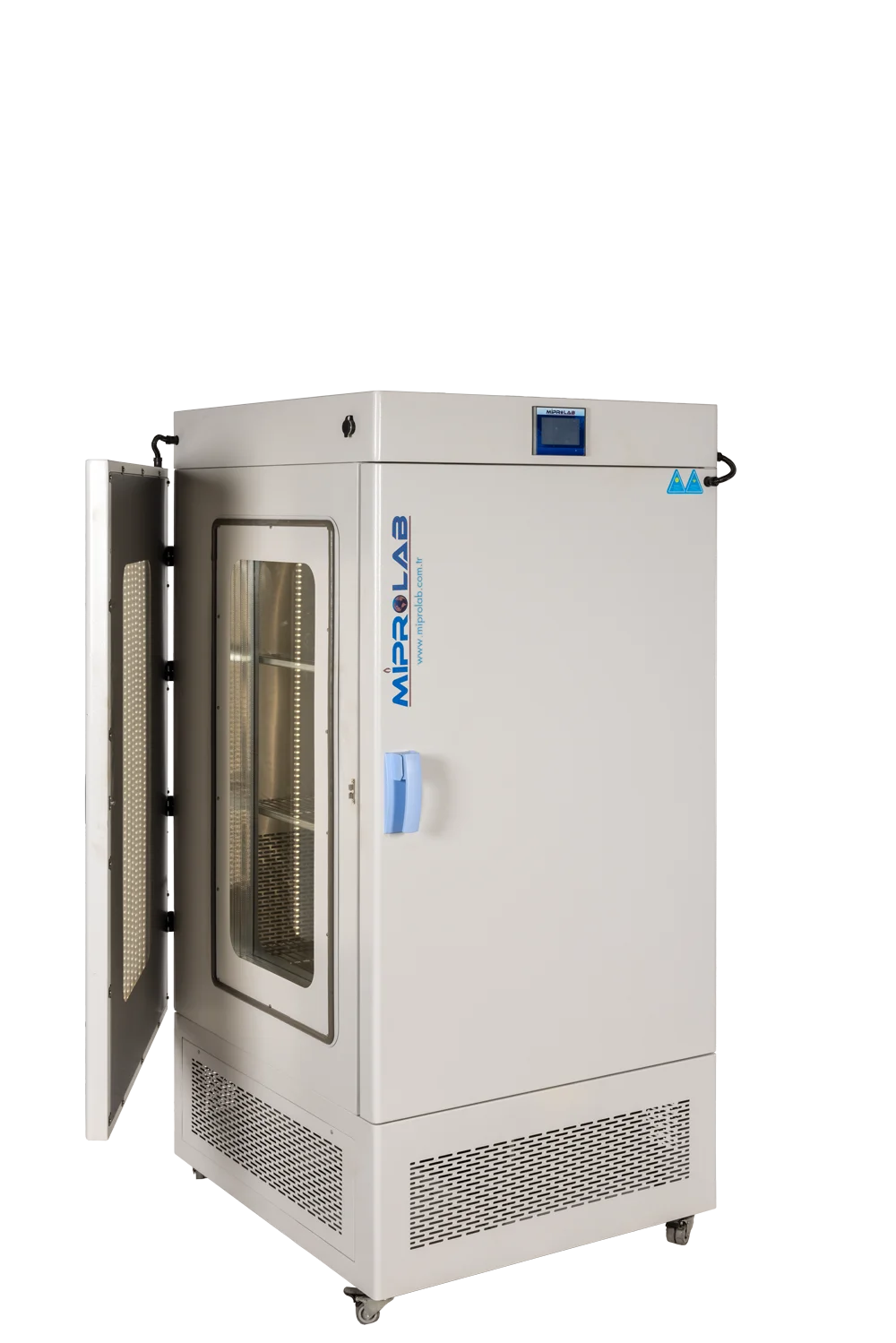

The large viewing windows allow samples to be observed without affecting the humidity and temperature values inside the chamber.

Considering cold and hot test temperatures, insulation is of great importance for the efficiency of the product. The insulation of the MBD Series Plant Growth devices is provided by injected high-density polyurethane.

Humidity is provided by a humidity generator and measured by a humidity sensor inside the chamber. This ensures the most accurate measurement of humidity. Temperature is controlled by a PID, humidification and cooling proportional control system.

In addition to the fault diagnosis system, there is an adjustable safety thermostat used for heating.

The powerful air circulation provided by the fan ensures excellent temperature and humidity distribution and stability, even at low temperatures.

There is a quick recovery time after the door opens and closes.

UNIQUE LOCKING SYSTEM

It provides ultra-tight sealing and security thanks to the lock that can be locked at two points.

STRONG AND UNIQUE DESIGN

Appropriate materials have been selected in the construction of the device to ensure high-level durability, quality and reliability.

The chamber is made of 304 stainless steel, and the outer body is manufactured from epoxy-coated galvanised steel that is unaffected by high humidity levels.

ADVANCED CONTROL SYSTEM

• The MBD Series Plant Growth Device is equipped with an advanced microprocessor-based control system.
• • The device's user panel features a Liquid Crystal Display (LCD).
• • MBD Series Plant Growth Cabinets can be connected to a computer via an RS 232 connection.
• • Production is carried out in accordance with the TS EN 61010-1 standard (Safety requirements for electrical equipment used in measurement, control and laboratory applications).
• • Furthermore, the refrigerant gas and insulation material used in MBD Plant Growth Cabinets are environmentally friendly and do not contain CFCs.

Program Memory: The device has 24 programmes and a memory capacity for 99 programme repeats.

Temperature Range: -20 °C /+80 °C

Humidity Value: 20%-95% RH

Lighting: 0-24 hours, 2 periods of lighting on, 2 periods of lighting off.

Time: 0-999 hours 59 minutes and continuous operation.

Alarm: The user is alerted when the set values are exceeded.

OPTIONAL REQUESTS

• Customised Production with Specific Dimensions and Features (Dimensions/Software/Program),
• • 4.3 / 5.5 and 7.2 Inch Screen Options,
• • Lighting options for powerful device illumination,
• • Wavelength-adjustable LED lighting for specialised work,
• • Remote access and control,
• • UV Lamp option,
• • CO2 control and reading,
• • Automatic water supply unit,
• • -20ºC - 100 ºC,
• • Custom lighting,
• • Telephone, SMS module,
• • Side port input.
