Sieve Shaking and Mills
29 Mayıs 2025, Perşembe

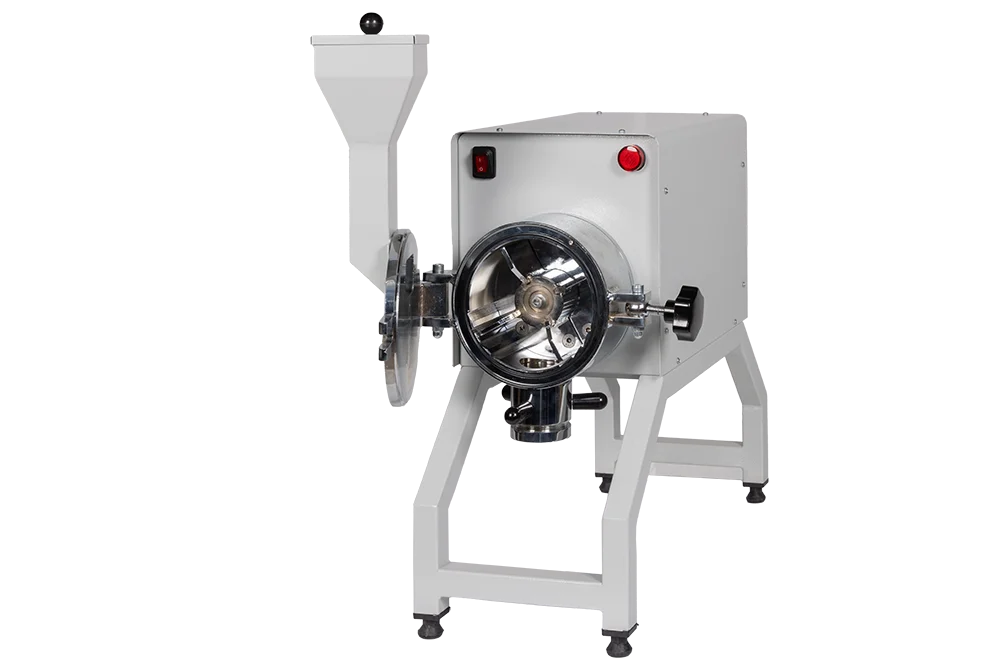

MLD SERIES MILLS
Miprolab MLD series mills are devices designed to be the most suitable and efficient for crushing or grinding products such as stone,
soil, legumes, wood, timber, glass, etc., for use in laboratory environments, and are used in many fields.
Robust Design Powerful Engine
- Alloy steel cast grinding cover and body,
- • 160mm Ø grinding chamber,
- • Grinding with a dynamically balanced 3-group hammer rotor made of special alloy steel,
- • Strong grinding capability with centrally balanced grinding hammers,
- • Efficient grinding with the grinder loading bunker on the cover perpendicular to the stator,
- • User protection with the loading bunker cover,
- • Dust collection is prevented and motor life is extended with the rotor directly connected to the motor,
- • Grinding of suitable samples is ensured with a 20 x 40 mm (+/-5 mm) grinding loading bunker feed inlet,
- • Efficient grinding with a 1.1 kW, 3000 rpm motor,
- • 220 volts - 50 Hz,
- • Grinding with a fineness between 1-100 microns for a 5 mm particle size,
- • High speed of 20,000 rpm/min,
- • Crusher rotor with 18 moles capacity,
- • Plastic body and stainless steel grinding chamber for ease of use,
- • Comfortable use and easy cleaning,
- • Stainless steel grinding blades,
- • 250x200 mm loading bunker,
- • Device dimensions 800x600x1500 mm,
- • 380 V/3 phase.
| MLD-160 | ||
| NET WEIGHT (kg) | 35 | |
| PACKAGED WEIGHT (kg) | 40 | |
OPTIONAL REQUESTS
- Production with Custom Dimensions and Specifications (Dimensions/Software/Program),
- • Digital display.
- MLD SERIES MILLS BROCHURE
